L10 (10 mm-1/4″) Peristaltic Pump Information
The Enviroflex L10 peristaltic hose pump is made from mild steel with a black powder coat finish and comes with 1/4″ BSPP connections in 316 stainless steel. The 10 mm hose bore allows for soft solids handling up to 8 mm and maximum hard solids handling up to 1.5 mm. The L10 is capable of a maximum continuous flow rate of 210 L/HR (300 L/HR intermittent) and comes with a precision ground industrial rubber hose and lubricant (specially formulated for use with our roller design of peristaltic pumps).
The Enviroflex L10 peristaltic hose pump is made from mild steel with a black powder coat finish and comes with 1/4″ BSPP connections in 316 stainless steel. The 10 mm hose bore allows for soft solids handling up to 8 mm and maximum hard solids handling up to 1.5 mm.
L10 Pump Details
Maximum Working Pressure: 7.5 Bar (109 PsiG)
Fluid Displacement Per Rev: 0.05 Litres (0.013 US Gallon)
Maximum Continuous Working Speed: 70 RPM
Maximum Intermittent Working Speed: 100 RPM
Maximum Operating Temperature: 100°C (212°F)
Maximum Soft Solids Capability: 8mm (5/16″)
Maximum Hard Solids Capability: 1mm (1/16″)
Maximum Suction Lift on Water: 9 Metres (27 feet)
Typical Weight (Varies with drive): 30 Kg (66 lbs)
Standard Specification (Optional Extras)
Body Material: Mild Steel (304 SS, 316 SS, Exotic Materials)
Body Finish: Powder Coated Black (BZP, Galv, Polished SS, Exotic Coatings)
Rotor Material/Finish: Aluminium (BZP, 304 SS, 316 SS, Exotic Coatings)
Connection Material: 316 SS (304 SS, Exotic Coatings, Exotic Materials)
Connection Type: BSPP (NPT, Tri-Clamp, PN16, ANSI, IDF, RJT, Camlock)
Connection Size: 1/4″ (10mm)
Connection Orientation: 9 o’clock (3 o’clock, 6 o’clock, 12 o’clock)
Non standard peristaltic pump options for the L10 hose pump
Heated water jackets
To protect a product from freezing or more is the case, setting off. The heating jacket is essentially a rectangular cavity that runs the length of the outer side wall and is piped with heated water or oil. Peristaltic pumps excel at pumping viscous product and when fitted with a heating jacket make our pumps ideally suited for pumping things like chocolate when used in combination with one of our food grade hoses.
High Pressure
Exceeding current market standards we have built heavily reinforced, high pressure peristaltic pumps rated to 20 barg.
Other non standard options
Include stainless steel gear motor cowls for food safe wash down areas, mobility options in the way of castors or trolleys and exotic metals and coating finishes for entire pumps or just key wetted parts.
Quick Pump Selection Click on the pump model that best suits your requirements for more detail
| Pump Size | Flow (L/HR) | Max cPS (At 15 RPM) | Max Soft Solids (mm) | Max Hard Solids (mm) |
|---|---|---|---|---|
| L10 | 210 | 1135 | 8 | 1 |
| L15 | 420 | 2874 | 12 | 2 |
| L20 | 1242 | 5286 | 20 | 3 |
| L25 | 2214 | 7235 | 25 | 2 |
| L32 | 3990 | 8384 | 25 | 5 |
| L40 | 6552 | 10686 | 32 | 6 |
| L50 | 10380 | 13708 | 40 | 7 |
| L65 | 19170 | 19075 | 52 | 9 |
| L80 | 25893 | 25199 | 64 | 12 |
| L100 | 46800 | 29153 | 80 | 15 |
| L150 | 105000 | 54777 | 120 | 22 |
Key benefits over direct competitors

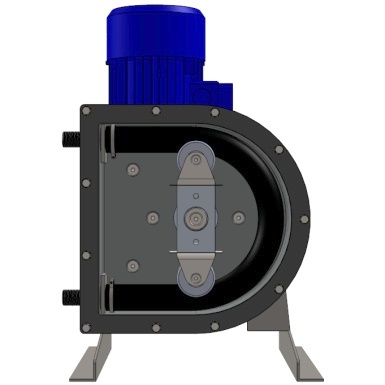

Roller Versus Shoe in Peristaltic Pumps
The majority of industrial peristaltic hose pumps use a shoe to compress the hose, shoes typically have a greater surface area and by virtue of being static result in a larger amount of resistance and as a consequence transfer a greater amount of heat into the hose. Heat is one of the key influences in determining hose life and so heat generation is ideally kept to a minimum.
Greater stroke length / displacement per revolution
Most of our peristaltic hose pump sizes in the L-range displace a greater volume of product per revolution compared to the same (bore) size pump from our competitors, this means the pump can achieve the same flow running slower (increasing hose life) or offer a greater flow rate at the same output speed.
Key benefits over different pump technologies
- Product is completely contained within the hose element (no gaskets, seals, balls or rotors to wear or clog) meaning reduced spares costs and typically lower maintenance times.
- Peristaltic pumps are extremely considerate to shear sensitive products due to their low running speed.
- Excellent at handling delicate substances, for example retaining the air in batter mix, keeping fruit pieces whole in yogurt and transferring whole fish from trawlers.
- Can dry run / pump mediums containing gas
- Self prime up to 9 metres
- Excellent dosing accuracy.
Enviroflex® is a registered trademark of Enviroflex Limited, we’re a small UK peristaltic pump manufacturer located in Derby.
What sets us apart from most other hose pump manufacturers (ignoring our pump advantages) is our willingness to make hose for all makes of peristaltic pumps to our tried and tested specification.
